SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: None

Item name: Rear Axle Kit

Length: 740 mm/815 MM/1120 mm

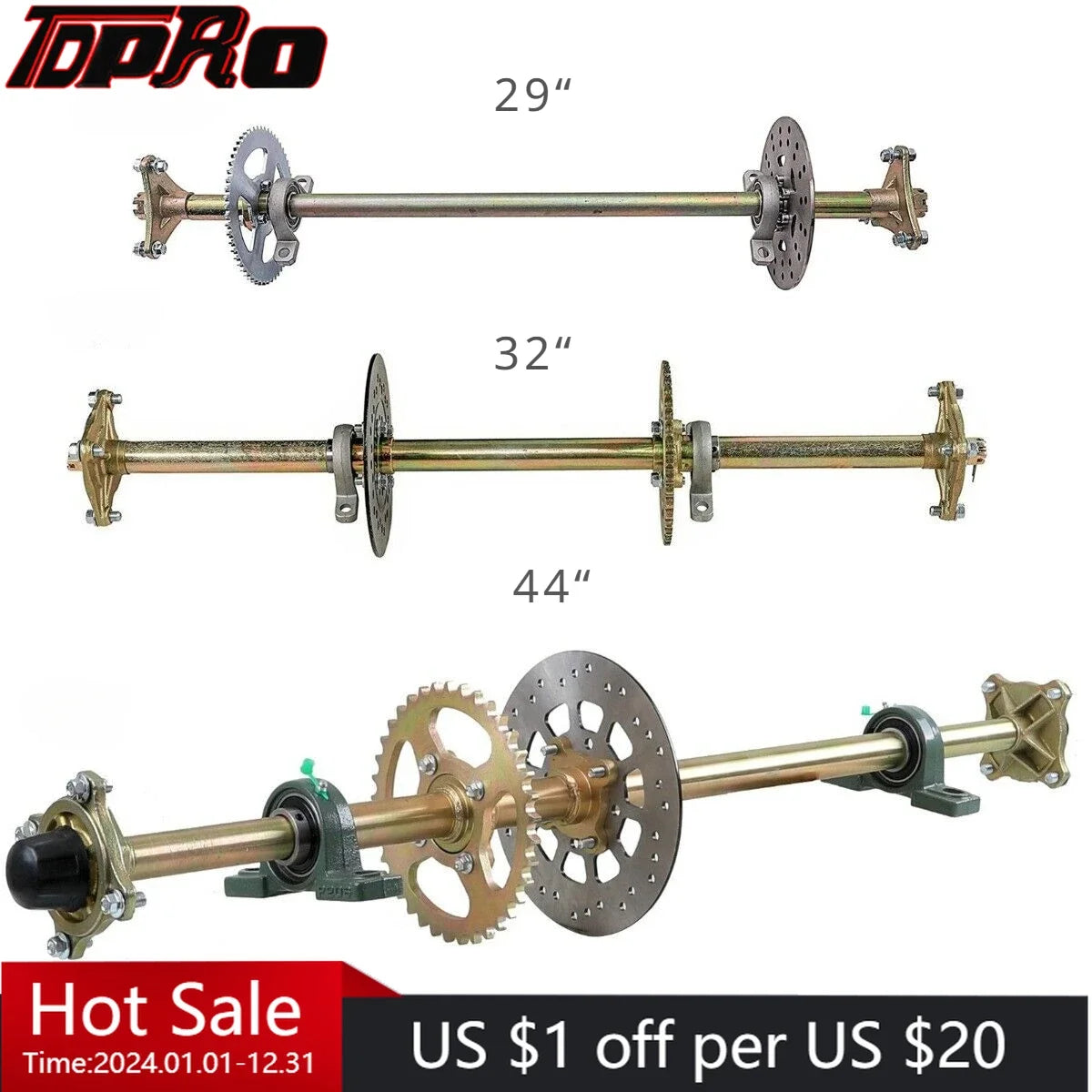

Size: 29/ 32 /44 inches

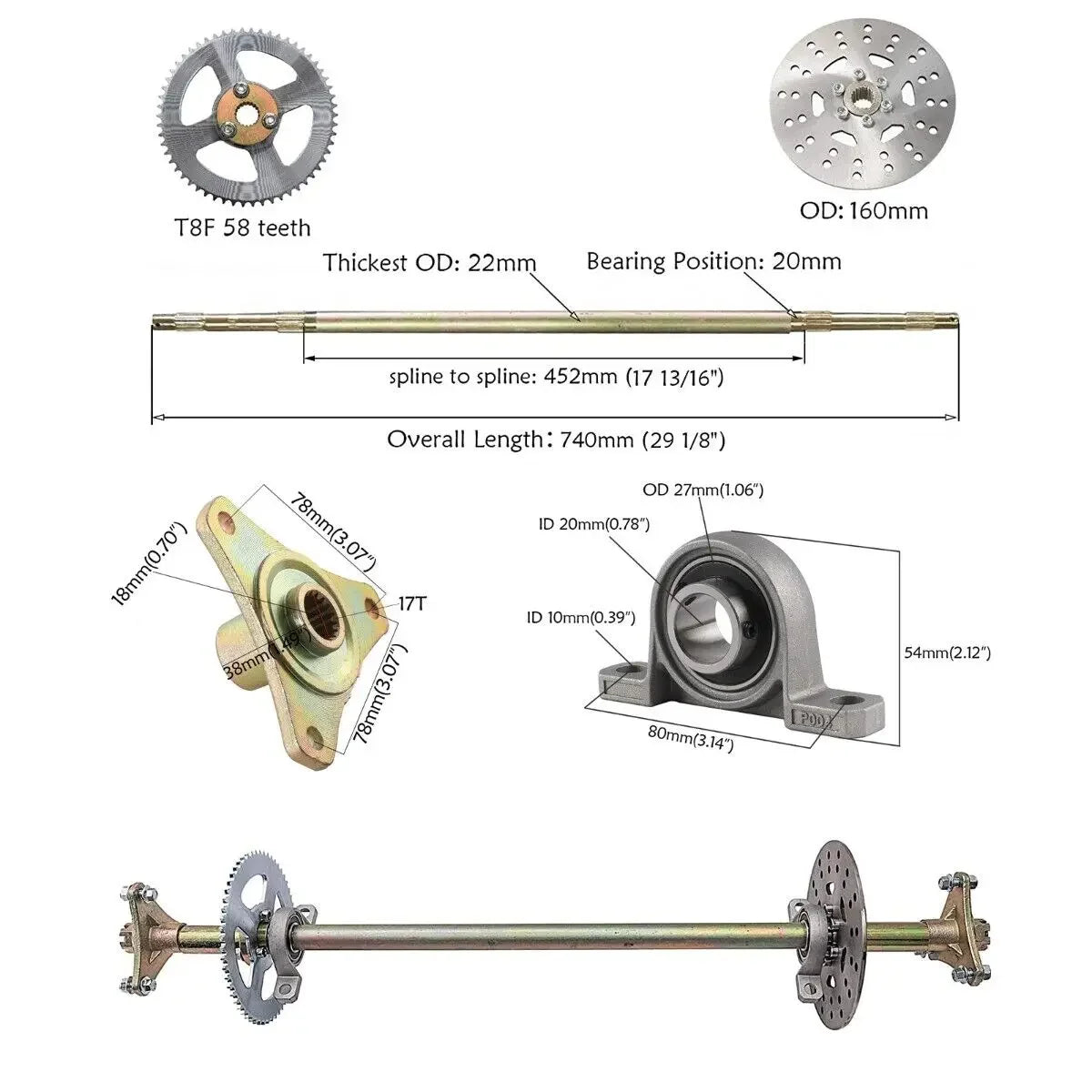

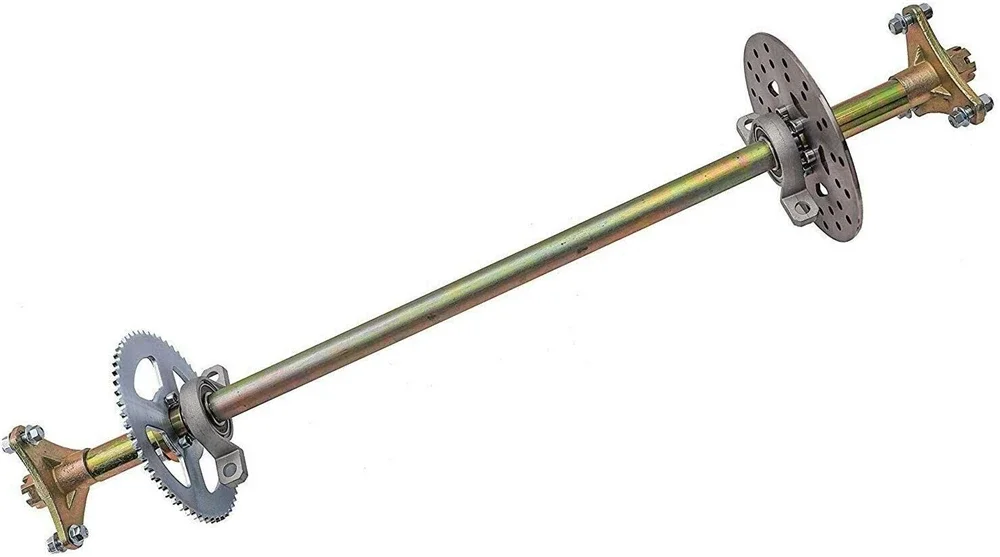

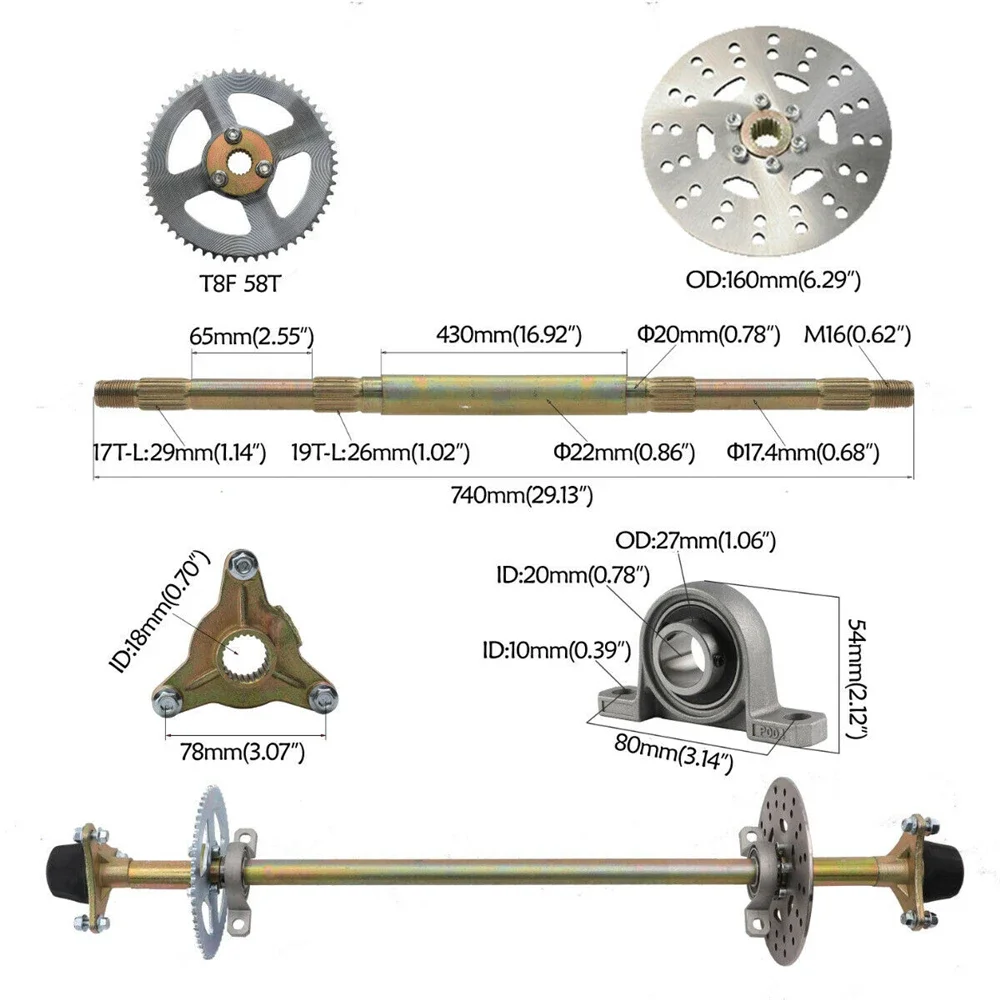

29 inch Axle
Dimensions:
Length: 740mm

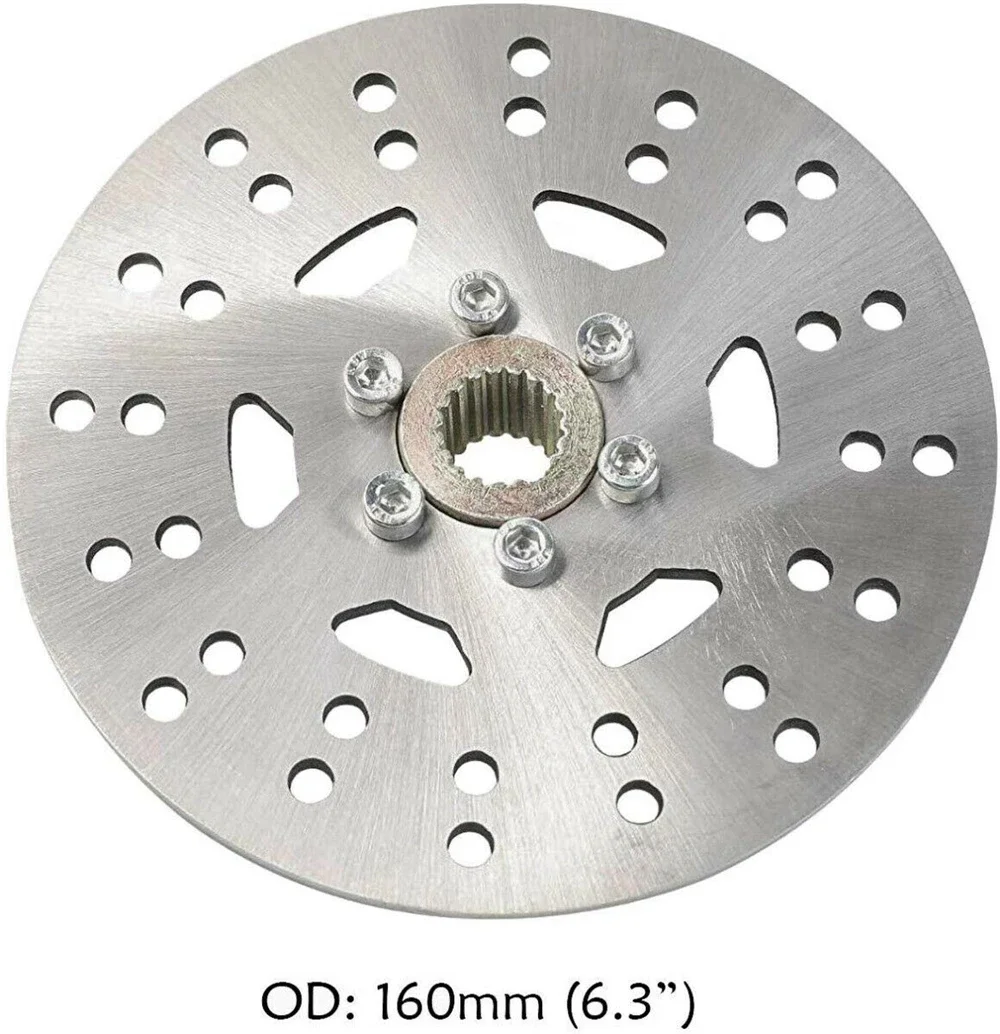

Disc: 160mm*4mm

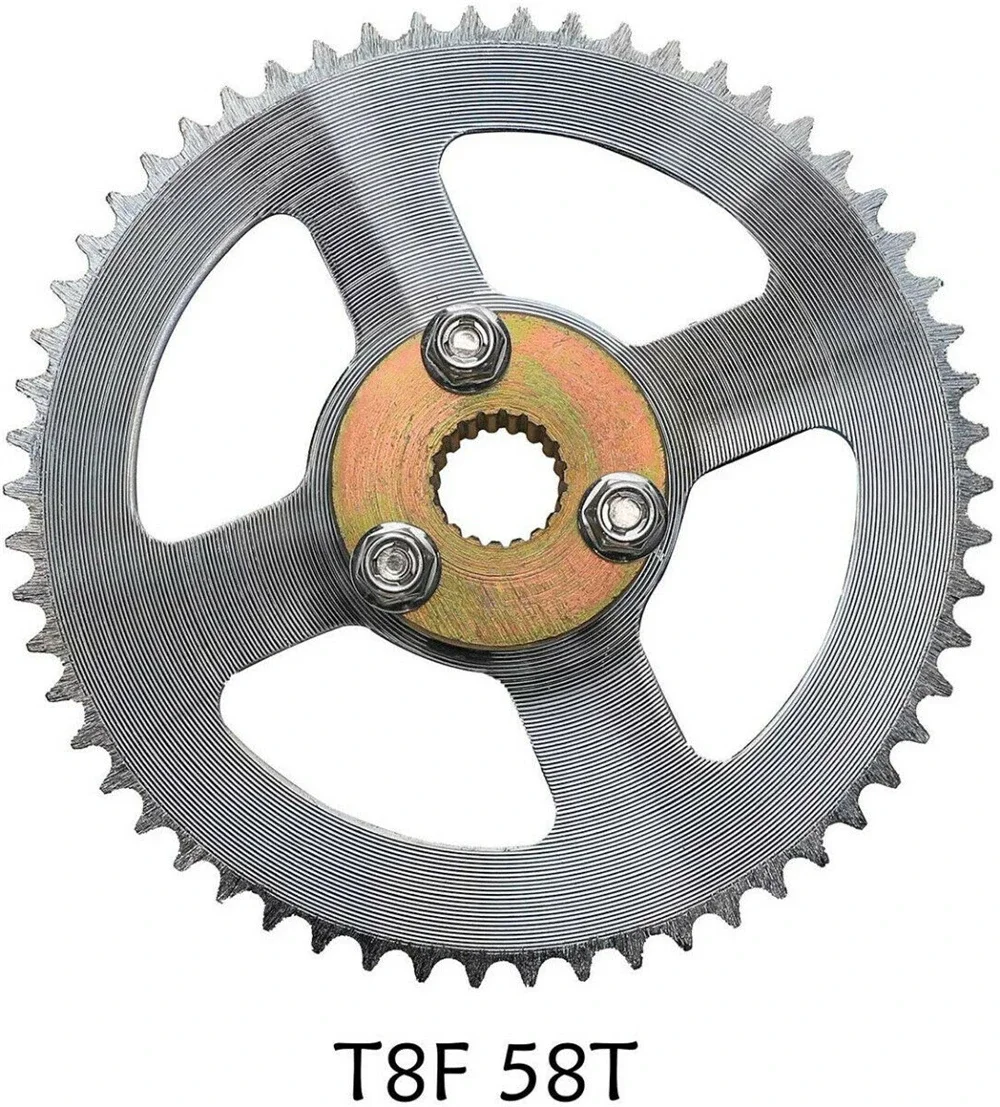

Sprocket: T8F 58T
Fit many 50cc 70cc 90cc atv quads, Gokarts such as Atomik , Motowork, DHZ , LEI etc.
Note: Please check the pictures and make sure it will fits your model before you buy it, thank you.

Package includes:
1x Rear Axle Kit

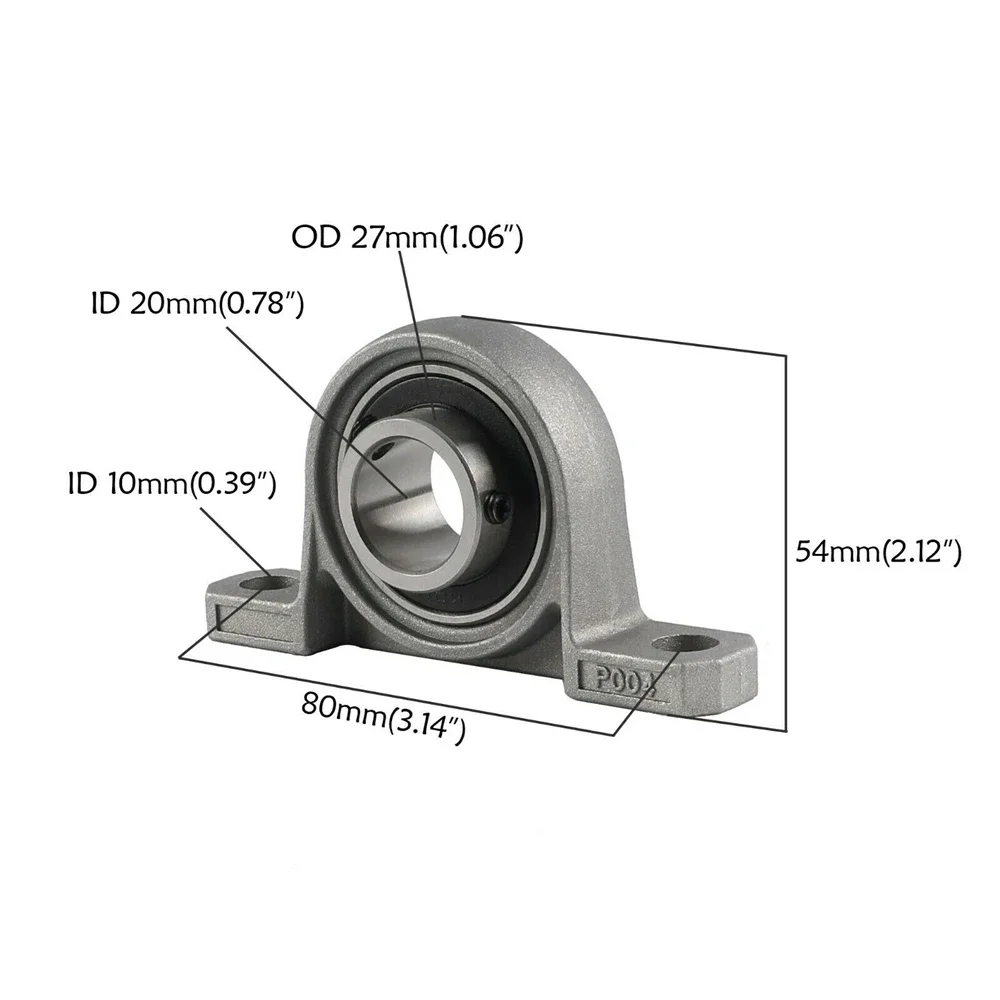

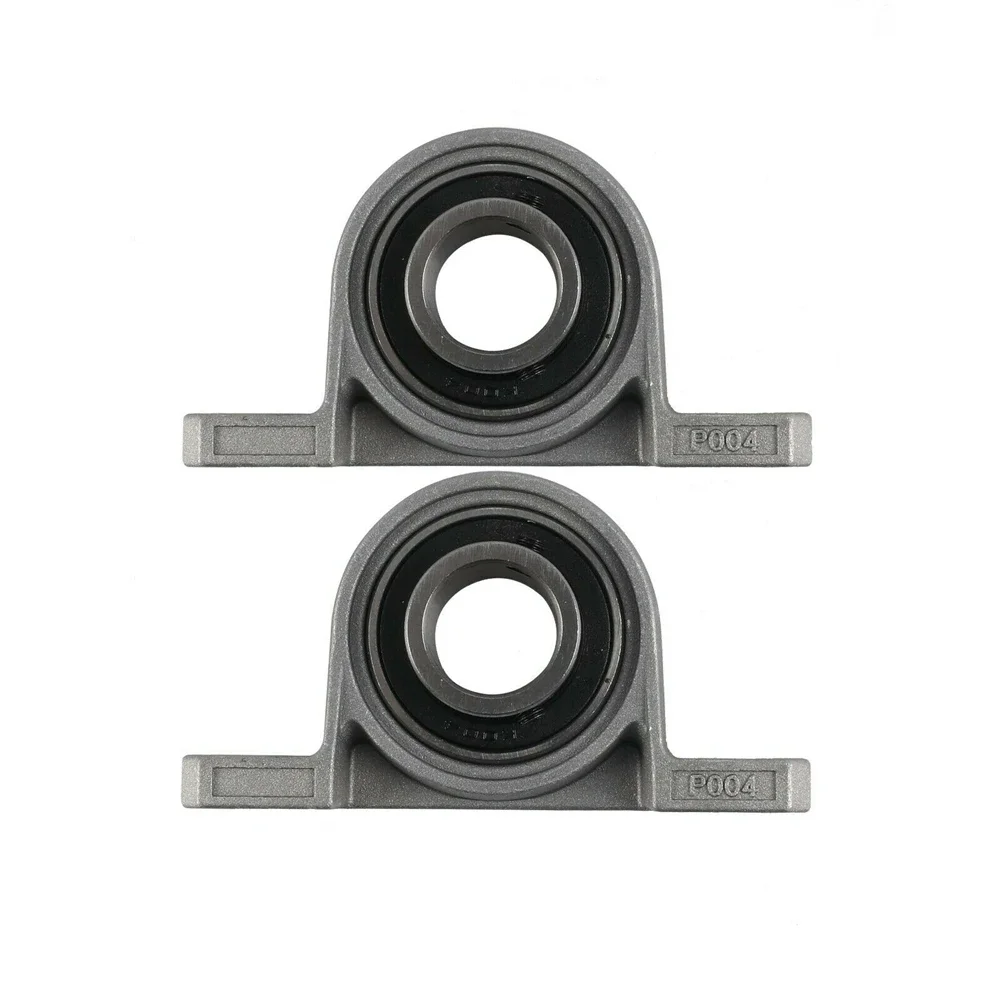

1x Pair Bearing Block

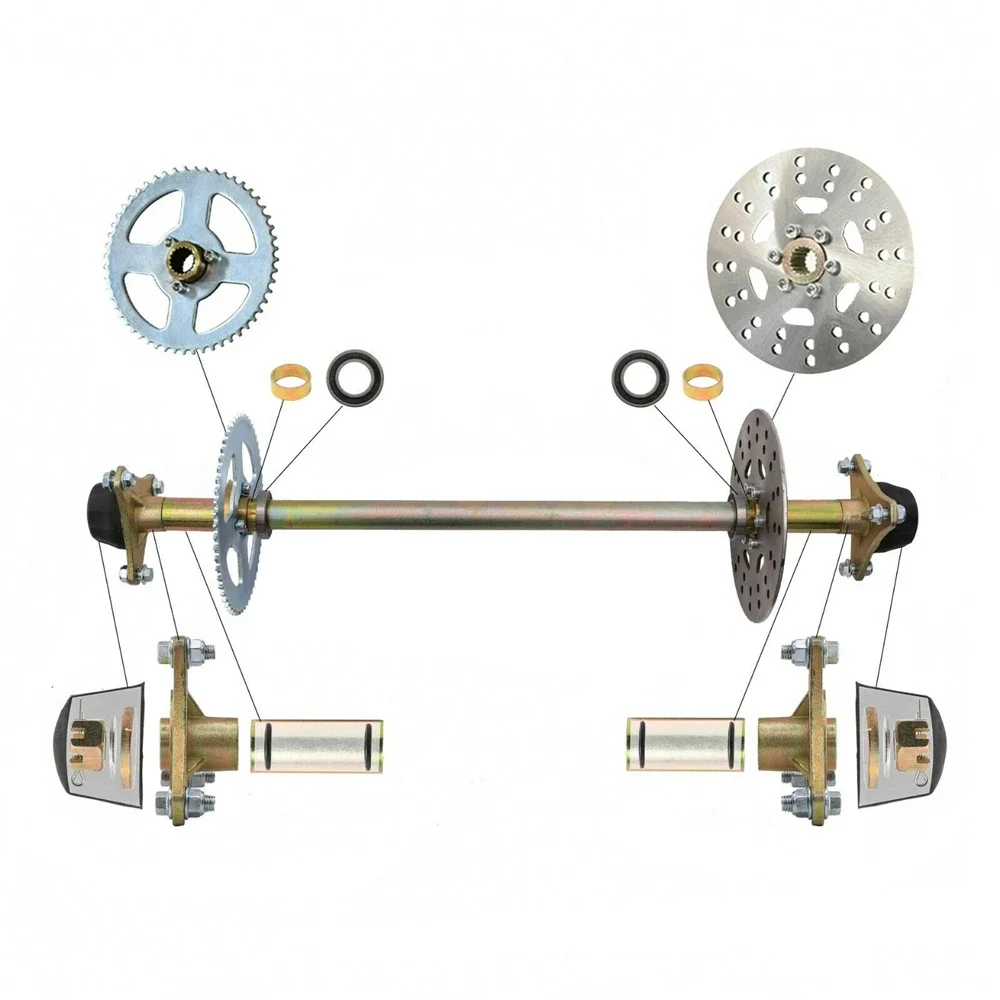

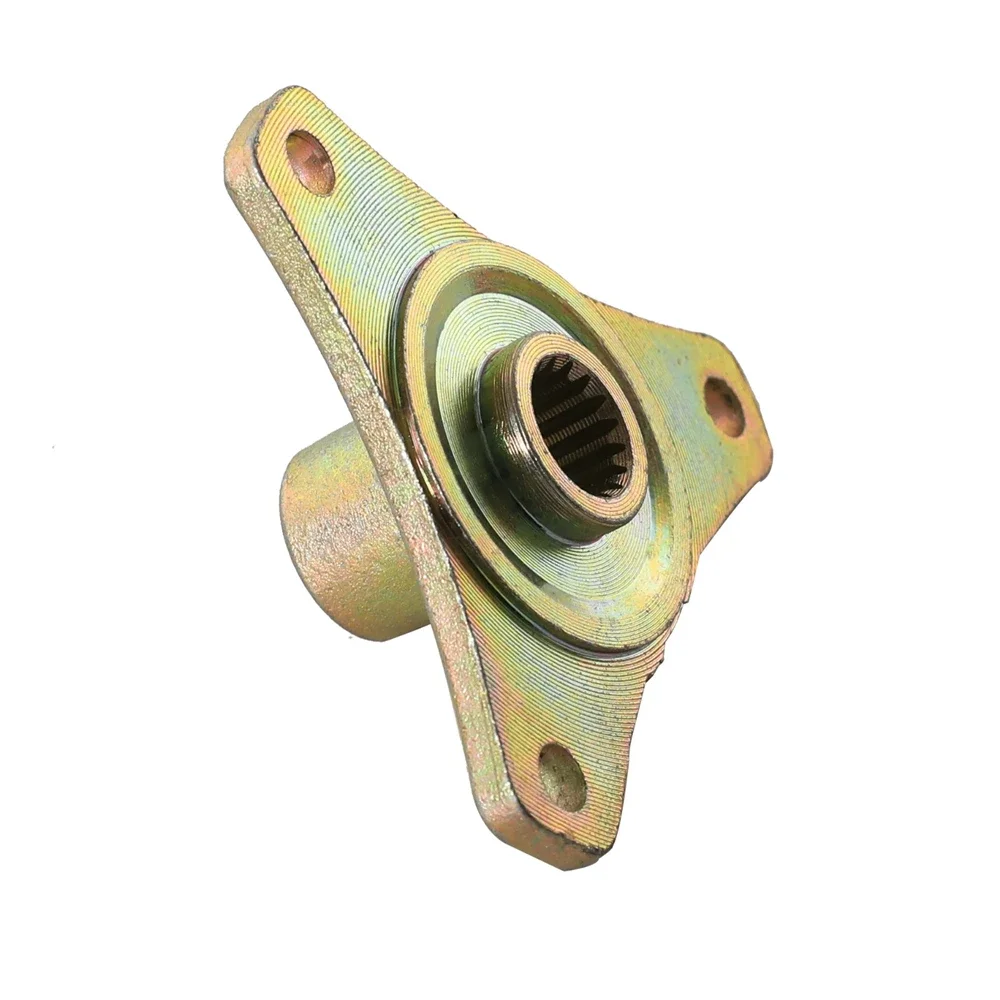

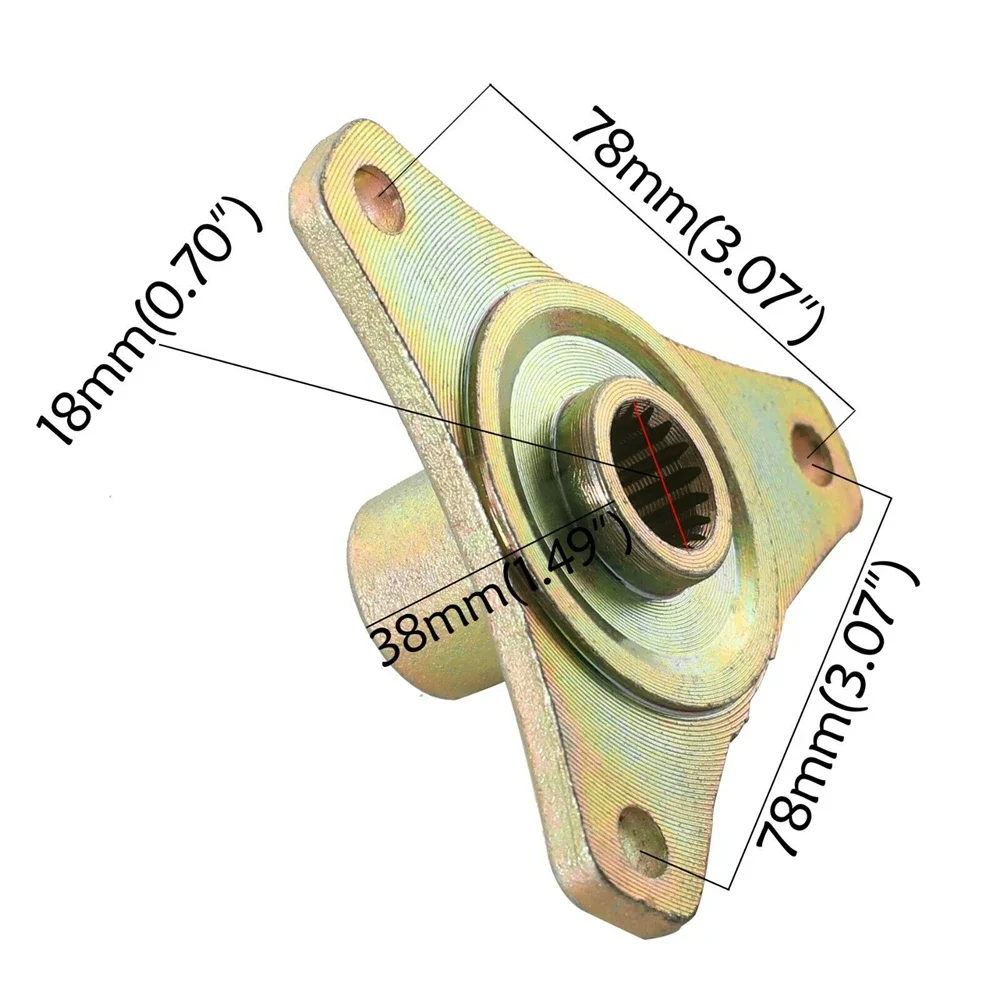

3 stud hubs, Disc & sprocket carriers, Pillow blocks, Bearings & seals in axle bearing housing as shown on gallery picture

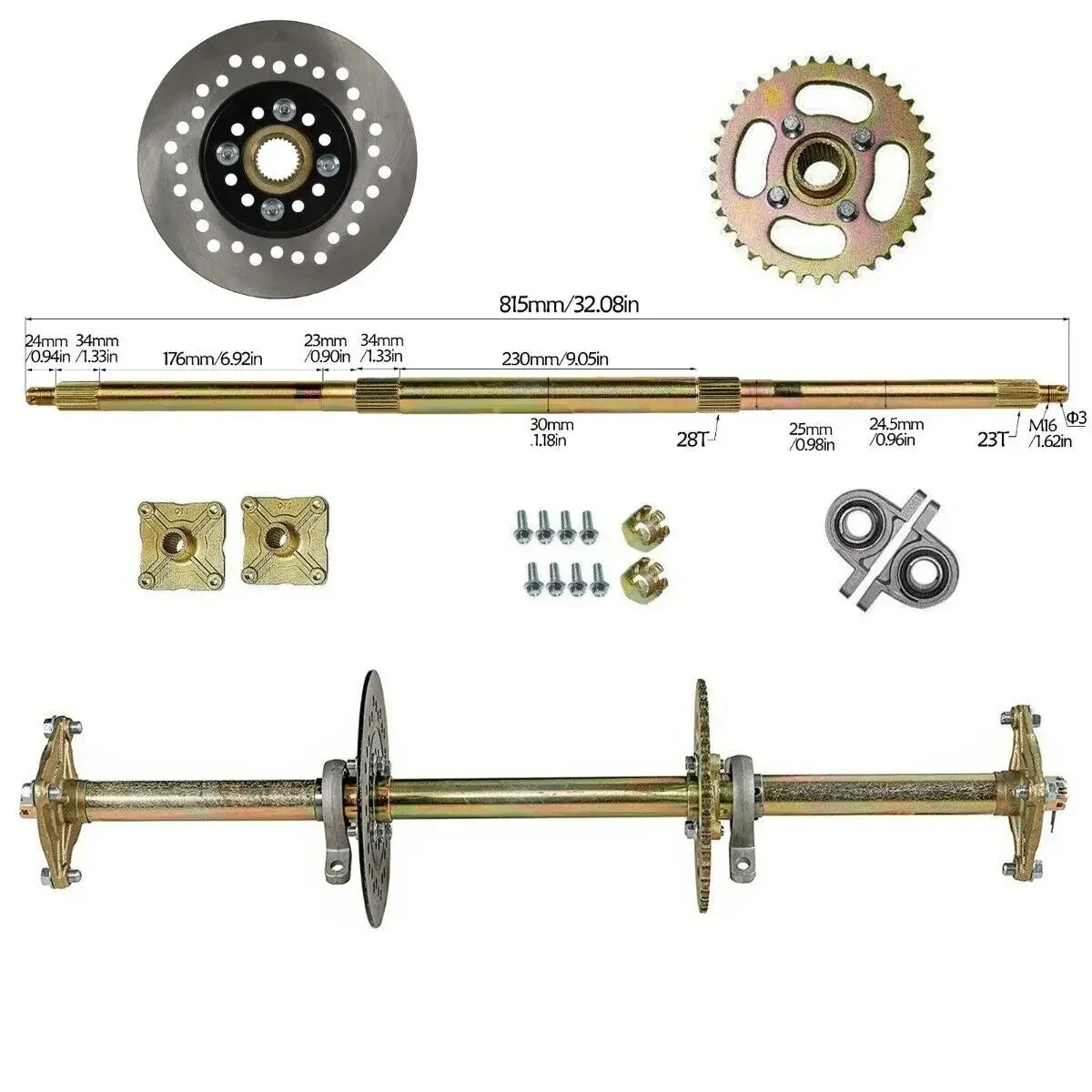

32 inch Axle:
   1. Overall length 32 inch (810mm), 1" in diameter and the thickest part of the axle is 1 3/16" (30mm)

2. The axle made by high strength chrome, bend proof, can support more than 500lbs.

3. The sprocket can be changed to other type, just make sure the dimension same as this 428 chain sprocket.

4. The axle is symmetric, so the brake and sprocket can be moved to a different location.

5. Perfect for vertical or horizontal engines with any displacement and electric motors.

6. Fits 6"-10" wheels with 3" distance from bolt hole to another contiguous bolt hole.

7. It has almost all the rear-end parts you need.

Come with:

(1) Axle

(1) Brake disc

(1) 428 or 420 chain sprocket as you choose

(1) 1" Pillow block bearings

(1) 4 bolt pattern wheel hub

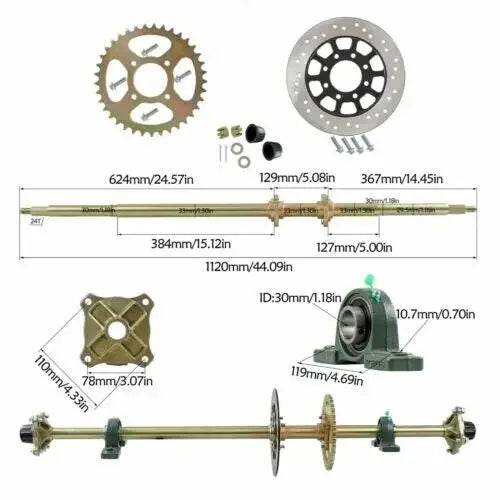

44 inch Axle

Overall length 32 inch (810mm), 1" in diameter and the thickest part of the axle is 1 3/16" (30mm)

The axle made by high strength chrome, bend proof, can support more than 500lbs.

The sprocket can be changed to other type, just make sure the dimension same as this 37T chain sprocket.

Fits 7"-10" wheels with 3" distance from bolt hole to another contiguous bolt hole.

It has almost all the rear-end parts you need.

Come with:

(1) Axle

(1) 37T  530 chain sprocket

(1) Brake Disc

(2) 1.18" Pillow block bearings

(2) 4 bolt pattern wheel hub
